Yuchai Diesel Engine Series

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Descriptions

Power range 22kVA-2750kVA
Precise control of fuel injection volume and abundant intake air, ensuring the full combustion and less emission of the diesel engine under different load conditions.

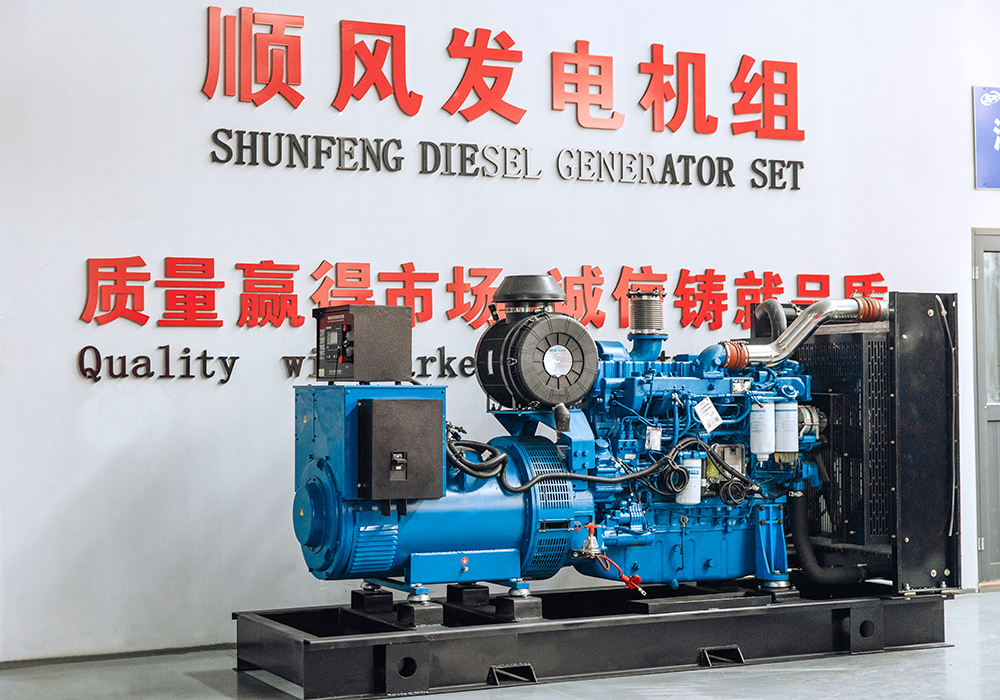

Diesel Generator Sets with Yuchai Engines, TY Series

TY series diesel generator sets are powered by Yuchai engines.

Power range 22kVA-2750kVA

1.Adopting Yuchai engines, featuring strong transient loading capacity, good maintainability and long service life;

2.Compliant with China Nonroad Stage III emission standard, the TY series generator sets are featured by high reliability, high efficiency, low noise level, as well as eco-friendly;

3.Precise control of fuel injection volume and abundant intake air, ensuring the full combustion and less emission of the diesel engine under different load conditions;

4.Meeting the requirements of Grade G3 generator set performance;

Parameter

Yuchai Guoer

Genset Model	Standby Power		Prime Power		Yuchai Engine
Genset Model	KVA	KW	KVA	KW	Yuchai Engine
SF-Y16	22	17.6	20	16	YC4V35-D20
SF-Y24	37.5	30	30	24	YC4V45Z-D20
SF-Y30	41.25	33	37.5	30	YC4V55Z-D20
SF-Y30	41.25	33	37.5	30	YC4D60-D25
SF-Y50	68.75	55	62.5	50	YC4D90Z-D25
SF-Y60	80	64	75	60	YC4A100Z-D25
SF-Y80	112.5	90	100	80	YC4A140L-D25
SF-Y100	137.5	110	125	100	YC4A180L-D20
SF-Y100	137.5	110	125	100	YC6B180L-D20
SF-Y120	162.5	130	150	120	YC6B205L-D20
SF-Y150	200	160	187.5	150	YC6A245L-D21
SF-Y200	275	220	250	200	YC6MK350L-D20
SF-Y250	350	280	312.5	250	YC6MK420L-D20
SF-Y300	400	320	375	300	YC6MJ500L-D21
SF-Y360	500	400	450	360	YC6T600L-D22
SF-Y400	550	440	500	400	YC6T660L-D20

Yuchai Guosan

Genset Model	Standby Power		Prime Power		Yuchai Engine
Genset Model	KVA	KW	KVA	KW	Yuchai Engine
SF-Y16	22	17.6	20	16	YCDV254FHZ-25
SF-Y20	27.5	22	25	20	YCDV254FHZ-40
SF-Y24	33	26.4	30	24	YCDV254FHZ-50
SF-Y40	55	44	50	40	YCD4V33H6-75
SF-Y45	62.5	50	56.25	45	YC4D80-D34
SF-Y50	68.75	55	62.5	50	YC4D90-D34
SF-Y60	80	64	75	60	YC4D105-D34
SF-Y80	112.5	90	100	80	YC4D140-D31
SF-Y90	125	100	112.5	90	YC4D155-D31
SF-Y80	110	88	100	80	YC4A140-D30
SF-Y90	125	100	112.5	90	YC4A155-D30
SF-Y90	125	100	112.5	90	YC4A165-D30
SF-Y110	150	120	137.5	110	YC4A190-D30
SF-Y120	162.5	130	150	120	YCD6Q23H8-210
SF-Y160	225	180	200	160	YCD6Q33H6-260
SF-Y120	162.5	130	150	120	YC6A205-D30
SF-Y140	187.5	150	175	140	YC6A230-D30
SF-Y150	200	160	187.5	150	YC6A245-D30
SF-Y160	225	180	200	160	YC6A275-D30
SF-Y200	275	220	250	200	YCA08350-D30
SF-Y200	275	220	250	200	YC6MK350-D30
SF-Y250	350	280	312.5	250	YC6MK420-D30
SF-Y280	/	/	350	280	YC6MK450-D30
SF-Y300	400	320	375	300	YC6MJ540-D30
SF-Y360	500	400	450	360	YC6MJ600-D30
SF-Y300	400	320	375	300	YC6K500-D31
SF-Y320	450	360	400	320	YC6K520-D30
SF-Y360	/	/	450	360	YC6K600-D30
SF-Y450	625	500	562.5	450	YC6TD780-D31
SF-Y500	687.5	550	625	500	YC6TD840-D31
SF-Y550	750	600	687.5	550	YC6TD900-D31
SF-Y450	625	500	562.5	450	YC6TD780-D30
SF-Y500	687.5	550	625	500	YC6TD840-D30
SF-Y550	750	600	687.5	550	YC6TD900-D30
SF-Y600	825	660	750	600	YC6TD1000-D30
SF-Y650	887.5	710	812.5	650	YC6TH1070-D31
SF-Y730	1000	800	912.5	730	YC6C1220-D31
SF-Y800	1125	900	1000	800	YC6C1320-D31
SF-Y900	1250	1000	1125	900	YC6C1520-D31
SF-Y1000	1375	1100	1250	1000	YC6C1660-D31
SF-Y800	1125	900	1000	800	YC12VTD1350-D30
SF-Y900	1250	1000	1125	900	YC12VTD1500-D30
SF-Y1000	1375	1100	1250	1000	YC12VTD1680-D30
SF-Y1100	1500	1200	1375	1100	YC12VTD1830-D30
SF-Y1200	1625	1300	1500	1200	YC12VTD2000-D30
SF-Y1200	1687.5	1350	1500	1200	YC12VC2070-D31
SF-Y1350	1875	1500	1687.5	1350	YC12VC2270-D31
SF-Y1500	2062.5	1650	1875	1500	YC12VC2510-D31
SF-Y1700	2250	1800	2125	1700	YC12VC2700-D31
SF-Y1800	2500	2000	2250	1800	YC12VC3000-D30
SF-Y1350	1875	1500	1687.5	1350	YC16VTD2270-D30
SF-Y1500	2062.5	1650	1875	1500	YC16VTD2510-D30
SF-Y1650	2250	1800	2062.5	1650	YC16VTD2700-D30
SF-Y1800	2500	2000	2250	1800	YC16VC3000-D31
SF-Y2000	2750	2200	2500	2000	YC16VC3300-D31
SF-Y2200	3000	2400	2750	2200	YC16VC3600-D31
SF-Y2400	3250	2600	3000	2400	YC16VC4000-D31
