SDEC Diesel Engine Series

008615161813995

info@shunfengpower.com

SDEC Diesel Engine Series

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Descriptions

Power range 28kVA-1000kVA
The engine delivers strong power and adaptability to the environment, can achieve fast startup under low temperature.

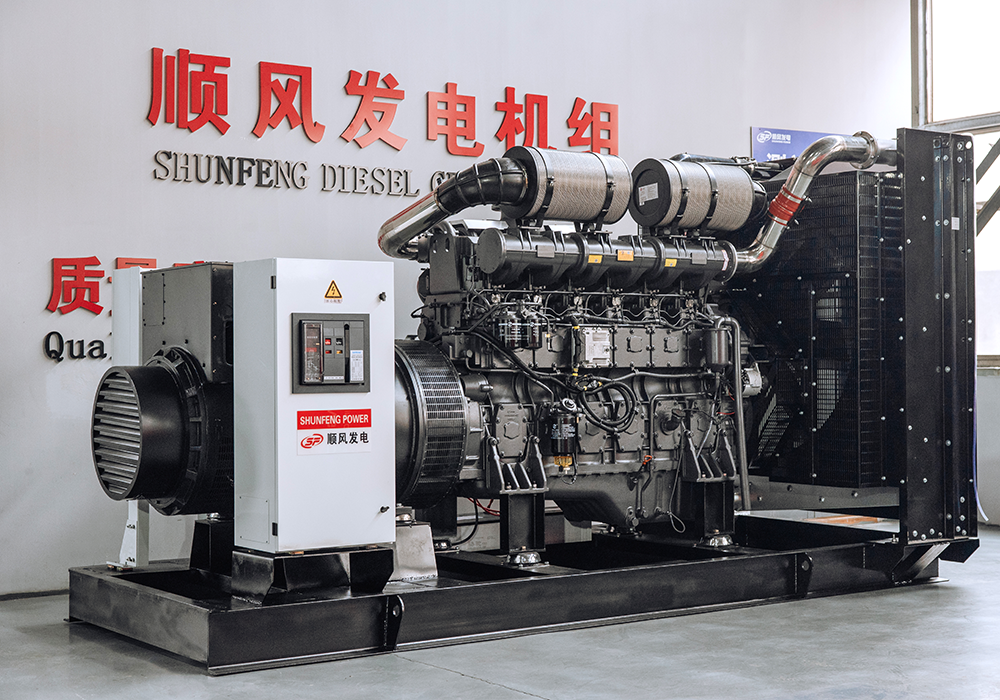

Diesel Generator Sets with SDEC Engines, TSO Series

TS series diesel generator sets are powered by SDEC engines.

Power range 28kVA-1000kVA

1.Adopting Shanghai Diesel Engine (SDEC) diesel engines;

2.SDEC has launched R, H, D, E, G and W series engines that are jointly engineered by SDEC, Austria AVL and UK RICARDO;

3.The generator engine features modular design and standard accessories, and adopts high-strength cylinder body, four-valve structure, and precise electronic speed governor;

4.The engine delivers strong power and adaptability to the environment, can achieve fast startup under low temperature;

Parameter

Shangchai Guoer

Genset Model	Standby Power		Prime Power		Shangchai Engine
Genset Model	KVA	KW	KVA	KW	Shangchai Engine
SF-S12	16.5	13.2	15	12	4Z2.3-G11
SF-S12	13.2	13.2	15	12	4Z2.3-G21
SF-S16	22.5	18	20	16	4Z2.7-G11
SF-S16	22.5	18	20	16	4Z2.7-G21
SF-S20	27.5	22	25	20	4Z3.0-G11
SF-S20	27.5	22	25	20	4Z3.0-G21
SF-S25	35	27.5	31.25	25	4Z3.2-G11
SF-S25	35	27.5	31.25	25	4Z3.2-G21
SF-S32	43.75	35	40	32	4ZT3.2-G11
SF-S32	43.75	35	40	32	4ZT3.2-G21
SF-S40	55	44	50	40	4ZT3.5-G21
SF-S50	68.75	55	62.5	50	4ZT4.1-G21
SF-S60	75	60	68.75	55	4ZTAA4.1-G21
SF-S50	68.75	55	62.5	50	SC4H95D2
SF-S64	87.5	70	80	64	SC4H115D2
SF-S80	112.5	90	100	80	SC4H140D2
SF-S90	125	100	112.5	90	SC4H160D2
SF-S100	137.5	110	125	100	SC4H180D2
SF-S120	165	132	150	120	SC7H205D2
SF-S130	182	145	162.5	130	SC7H220D2
SF-S135	187.5	150	168.75	135	SC7H230D2
SF-S150	207	165	187.5	150	SC7H250D2
SF-S160	225	180	200	160	SC8D280D2
SF-S180	250	200	225	180	SC9D310D2
SF-S200	275	220	250	200	SC9D340D2
SF-S220	312.5	250	275	220	SC10E380D2
SF-S280	375	300	350	280	SC12E460D2
SF-S290	400	320	363	290	SC12E480D2
SF-S300	412.5	330	375	300	SC13E500D2
SF-S320	450	360	400	320	SC13E550D2
SF-S250	350	280	312.5	250	SC13G420D2
SF-S300	412.5	330	375	300	SC15G500D2
SF-S360	500	400	450	360	SC25G610D2
SF-S400	562.5	450	500	400	SC25G690D2
SF-S450	625	500	562.5	450	SC27G755D2
SF-S500	687.5	550	625	500	SC27G830D2
SF-S550	750	600	687.5	550	SC27G900D2
SF-S600	825	660	750	600	SC33W990D2
SF-S700	975	780	875	700	SC33W1150D2

Shangchai Guosan

Genset Model	Standby Power		Prime Power		Shangchai Engine
Genset Model	KVA	KW	KVA	KW	Shangchai Engine
SF-S40	55	44	50	40	4HTAA4.3-G31
SF-S50	68.75	55	62.5	50	4HTAA4.3-G32
SF-S64	87.5	70	80	64	4HTAA4.3-G33
SF-S80	112.5	90	100	80	4HTAA4.3-G34
SF-S90	125	100	112.5	90	4HTAA4.3-G35
SF-S110	150	120	137.5	110	4HTAA4.3-G36
SF-S110	150	120	137.5	110	6HTAA6.5-G31
SF-S120	165	132	150	120	6HTAA6.5-G32
SF-S135	187.5	150	168.75	135	6HTAA6.5-G35
SF-S150	207	165	187.5	150	6HTAA6.5-G33
SF-S160	225	180	200	160	6HTAA6.5-G34
SF-S160	225	180	200	160	6DTAA8.9-G31
SF-S180	250	200	225	180	6DTAA8.9-G32
SF-S200	275	220	250	200	6DTAA8.9-G33
SF-S220	312.5	250	275	220	6DTAA8.9-G34
SF-S250	350	280	312.5	250	6ETAA11.8-G33
SF-S280	375	300	350	280	6ETAA11.8-G33
SF-S300	412.5	330	375	300	6ETAA11.8-G31
SF-S320	450	360	400	320	6ETAA12.8-G32
SF-S360	500	400	450	360	6ETAA12.8-G31
SF-S400	550	440	500	400	6ETAA12.8-G310
SF-S400	562.5	450	500	400	12GTAA27-G34
SF-S450	625	500	562.5	450	12GTAA27-G33
SF-S500	687.5	550	625	500	12GTAA27-G32
SF-S560	775	620	700	560	12GTAA27-G31
SF-S400	562.5	450	500	400	6KTAA25-G36
SF-S450	625	500	562.5	450	6KTAA25-G35
SF-S500	687.5	550	625	500	6KTAA25-G34
SF-S560	750	600	700	560	6KTAA25-G33
SF-S600	825	660	750	600	6KTAA25-G32
SF-S660	900	720	825	660	6KTAA25-G31
SF-S720	1000	800	900	720	6KTAA25-G320
SF-S800	1100	880	1000	800	6KTAA25-G321
SF-720	1000	800	900	720	6WTAA35-G32
SF-800	1100	880	1000	800	6WTAA35-G31
SF-900	1250	1000	1125	900	6WTAA35-G310
SF-1000	1375	1100	1250	1000	6WTAA35-G311
