Baudouin Diesel Engine Series

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Descriptions

Power range 20kVA-2750kVA
High pressure common rail fuel injection technology, operating at 2200bar; New generation WISE series control system;

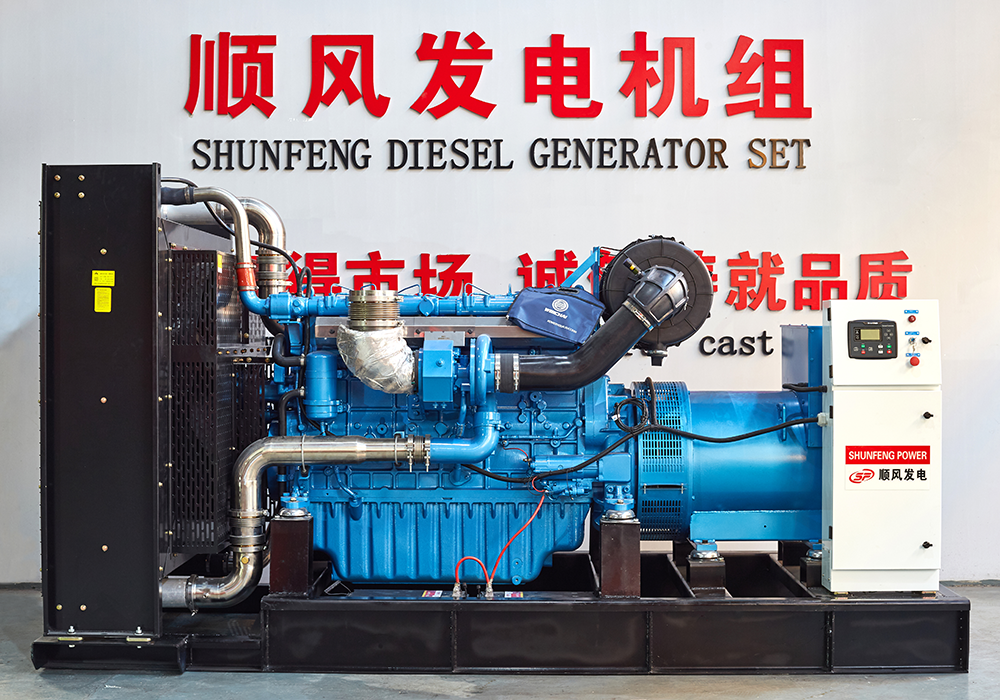

Diesel Generator Sets with Baudouin Engines, TB Series

TB series diesel generator sets are powered by Baudouin engines.

Power range 20kVA-2750kVA

1.Adopting Baudouin engines, having a reputation for high quality and high adaptability;

2.Engine power performance, economic efficiency and serviceability have reached the international advanced level;

3.High reliability design, resulting in extended maintenance intervals;

4.High pressure common rail fuel injection technology, operating at 2200bar;

5.New generation WISE series control system;

6.High efficiency, high pressure ratio supercharging technology;

7.Low temperature water-air intercooling technology;

Parameter

Weichai Guoer

Genset Model	Standby Power		Prime Power		Wechai Engine
Genset Model	KVA	KW	KVA	KW	Wechai Engine
SF-W16	22.5	18	20	16	WP2.3D25E200
SF-W24	32.5	26	30	24	WP2.3D33E200
SF-W30	41.25	33	37.5	30	WP2.3D40E200
SF-W36	50	40	45	36	WP2.3D48E200
SF-W50	68.75	55	62.5	50	WP4.1D66E200
SF-W64	87.5	70	80	64	WP4.1D80E200
SF-W80	110	88	100	80	WP4.1D100E200
SF-W50	68.75	55	62.5	50	WP4D66E200
SF-W80	110	88	100	80	WP4D100E200
SF-W100	150	120	125	100	WP6D132E200
SF-W120	165	132	150	120	WP6D152E200
SF-W136	187.5	150	170	136	WP6D167E200
SF-W160	220	176	200	160	WP10D200E200
SF-W184	250	200	230	184	WP10D238E200
SF-W200	275	220	250	200	WP10D264E200
SF-W250	350	280	312.5	250	WP10D320E200
SF-W250	350	280	312.5	250	WP12D353E200
SF-W300	400	320	375	300	WP13D385E200
SF-W330	450	360	412.5	330	WP13D405E200
SF-W460	650	520	575	460	6M33D572E200
SF-W520	725	580	650	520	6M33D633E200
SF-W540	750	600	675	540	6M33D670E200
SF-W640	900	720	800	640	8M33D800E200
SF-W720	1000	800	900	720	8M33D890E200
SF-W640	875	700	800	640	12M26D792E200
SF-W720	1000	800	900	720	12M26D902E200
SF-W800	1100	880	1000	800	12M26D968E200
SF-W900	1250	1000	1125	900	12M33D1108E200
SF-W1000	1375	1100	1250	1000	12M33D1210E200
SF-W1100	1500	1200	1375	1100	12M33D1320E200

Weichai Guosan

Genset Model	Standby Power		Prime Power		Wechai Engine
Genset Model	KVA	KW	KVA	KW	Wechai Engine
SF-W14	20	16	17.5	14	WP3.2D20E310
SF-W16	22.5	18	20	16	WP3.2D28E310
SF-W24	37.5	30	30	24	WP3.2D36E310
SF-W30	41.25	33	37.5	30	WP3.2D44E310
SF-W50	68.75	55	62.5	50	WP4.1D66E310
SF-W64	87.5	70	80	64	WP4.1D84E310
SF-W80	110	88	100	80	WP4.1D105E310
SF-W90	125	100	112.5	90	WP4.6ND120E310
SF-W100	150	120	125	100	WP4.6ND138E310
SF-W120	165	132	150	120	WP4.6ND148E310A
SF-W50	68.75	55	62.5	50	WP4D66E310
SF-W70	100	80	87.5	70	WP4D100E310
SF-W100	150	120	125	100	WP6D132E310
SF-W120	162.5	130	150	120	WP6D152E310
SF-W150	200	160	187.5	150	WP7D185E310
SF-W180	250	200	225	180	WP7D216E310
SF-W180	250	200	225	180	WP7D240E310
SF-W200	275	220	250	200	WP7D264E310
SF-W200	275	220	250	200	WP10D264E350
SF-W220	300	240	275	220	WP10D288E350
SF-W250	350	280	312.5	250	WP10D320E350
SF-W300	400	320	375	300	WP13D385E310
SF-W350	500	400	437.5	350	WP13D440E310
SF-W400	550	440	500	400	WP13D490E310
SF-W520	725	580	650	520	6M33D633E310
SF-W600	812.5	650	750	600	6M33D725E310
SF-W640	875	700	800	640	8M33D800E310
SF-W720	1000	800	900	720	8M33D895E310
SF-W800	1100	880	1000	800	8M33D975E310
SF-W720	1000	800	900	720	12M33D902E310
SF-W800	1100	880	1000	800	12M33D968E310
SF-W900	1250	1000	1125	900	12M33D1108E310
SF-W1000	1375	1100	1250	1000	12M33D1240E310
SF-W1100	1500	1200	1375	1100	12M33D1320E310
SF-W1200	1650	1320	1500	1200	12M33D1500E310
SF-W1200	1750	1400	1500	1200	16M33D1530E310
SF-W1200	1750	1400	1500	1200	16M33D1580E310
SF-W1400	1900	1520	1750	1400	16M33D1680E310
SF-W1500	2062.5	1650	1875	1500	16M33D1800E310
SF-W1600	2250	1800	2000	1600	16M33D1980E310
SF-W1600	2250	1800	2000	1600	20M33D2020E310
SF-W1800	2500	2000	2250	1800	20M33D2210E310
SF-W1800	2500	2000	2250	1800	12M55D2210E310
SF-W2000	2750	2200	2500	2000	12M55D2450E310
SF-W2200	3000	2400	2750	2200	12M55D2700E310
SF-W2250	3125	2500	2812.5	2250	16M55D2750E310
SF-W2400	3312.5	2650	3000	2400	16M55D2900E310
SF-W2600	3750	3000	3250	2600	16M55D3300E310
SF-W3000	4125	3300	3750	3000	16M55D3600E310
